Toshiba VRF INVERTER Compressor
Yonan 18 Year Experience, 12 Million AC Sold Annual, 150+ County
5 Year Toshiba Compressor Parts Warranty
2 Year Yonan Parts.
*Optional: Licensed HVAC Installer w/ 6 M Workmanship
Below price are system Price only, does not included install

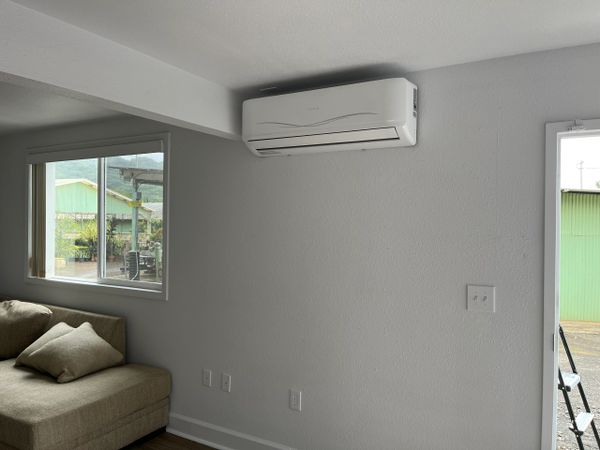

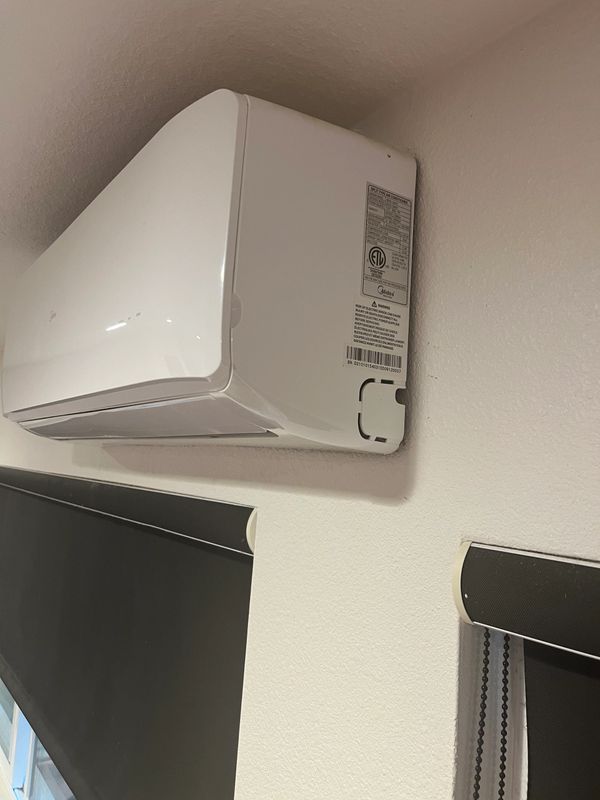

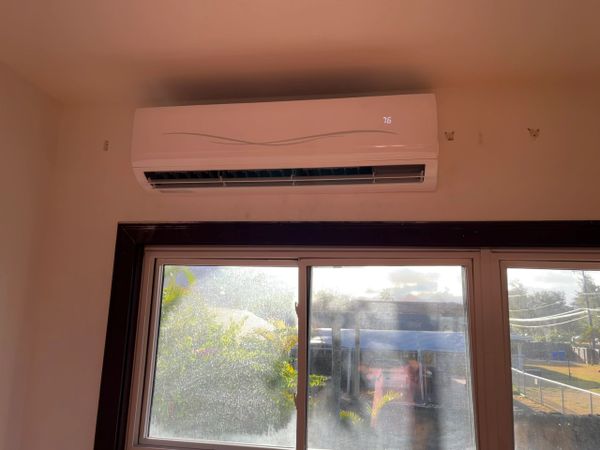

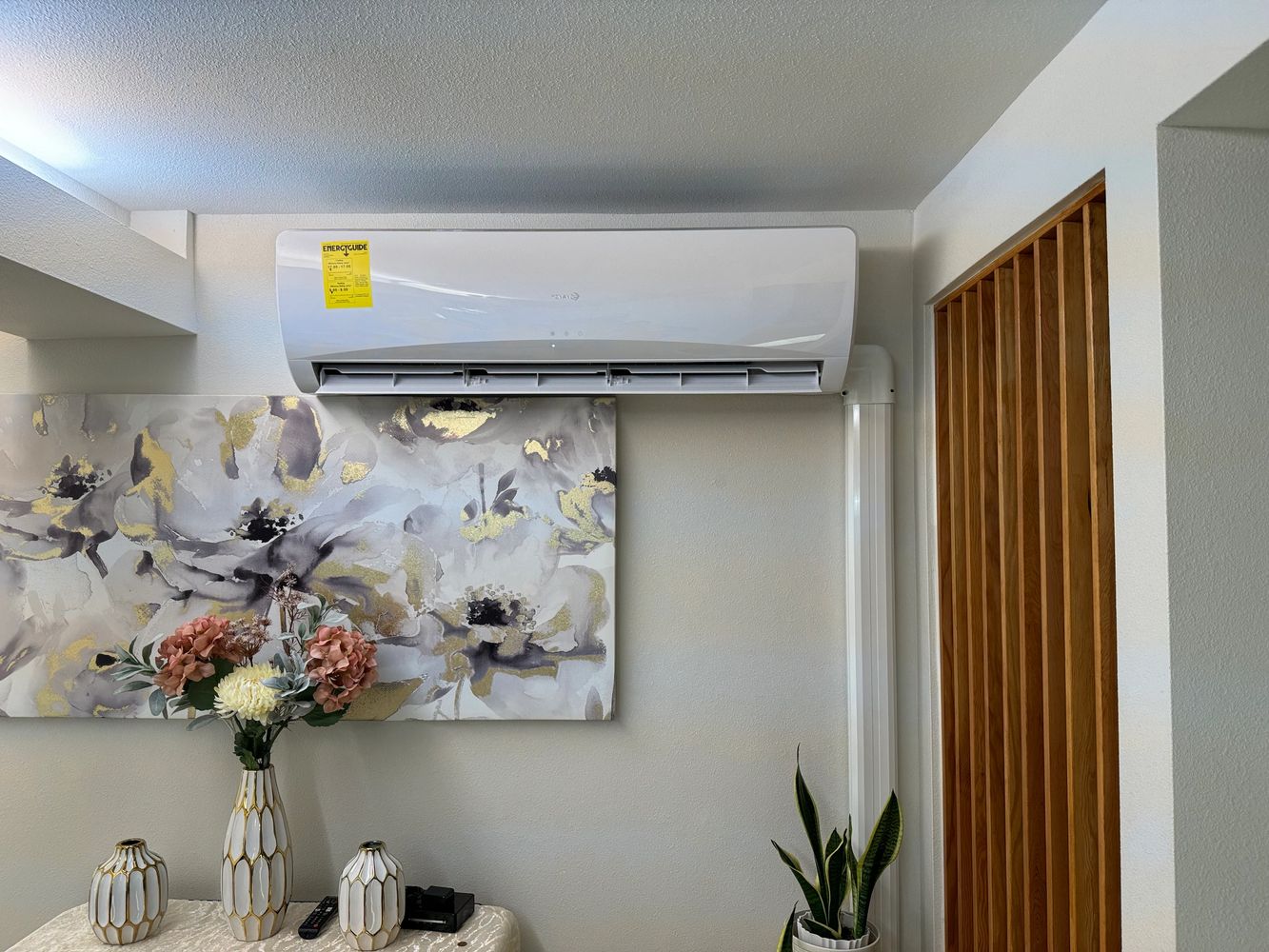

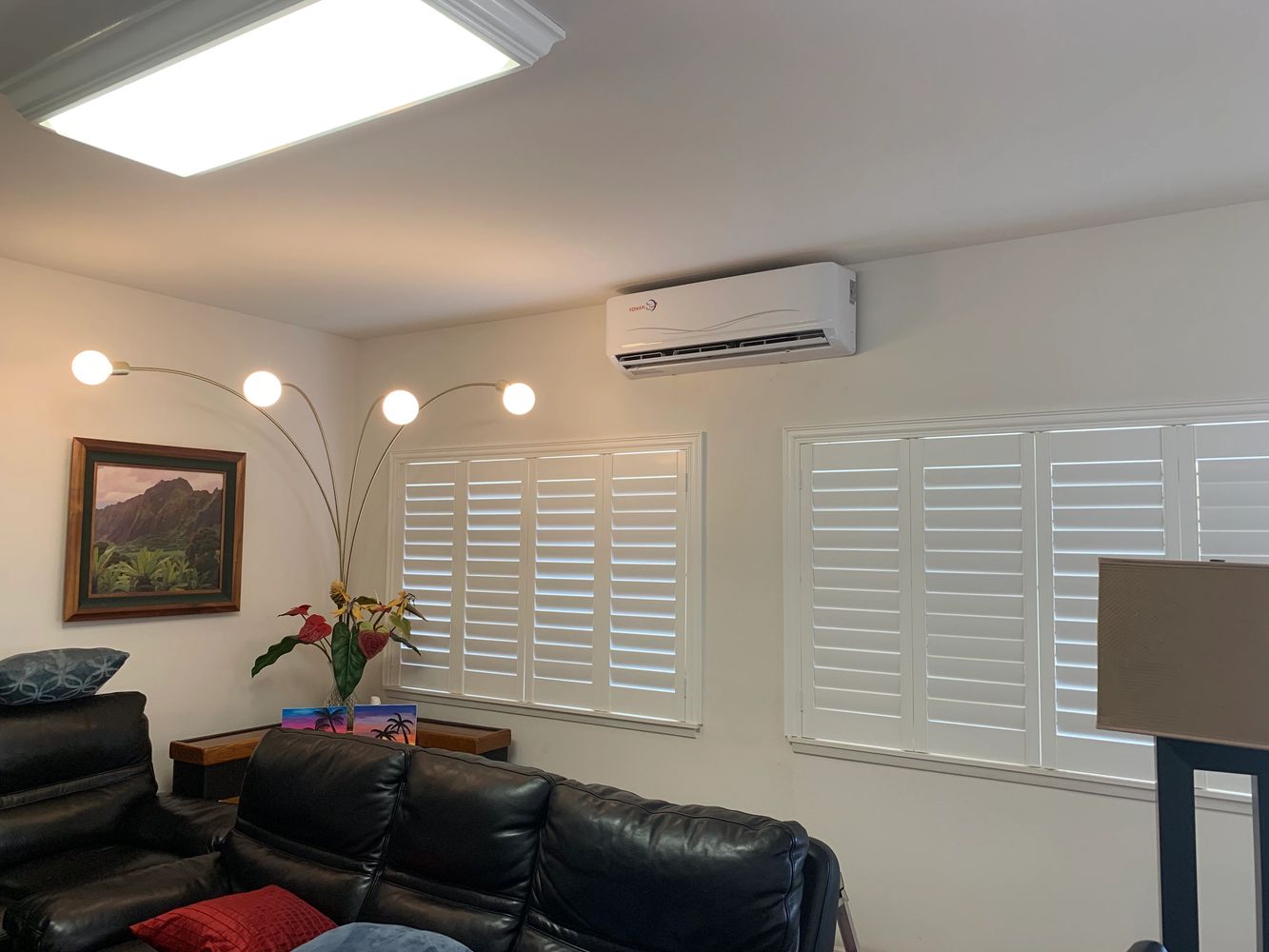

Indoors Unit
Modern design, Led Display, whisper quiet Welling Fan motor, reusable air Filter. Auto save last used setting. When power on automatic saves last used mode and temperature. No need to reset it. Also feature self diagnostic will automatically display error code if their is a problem. Indoor unit is ductless design, no expensive duct work, no duct loss on cooling. Only use a 3 inch hole in wall in-between Indoor and outdoor Unit. Free up window to get natural light in and fresh air on cool days. No more windows shaker or loud portable Air Conditioner that use a lot on future energy.

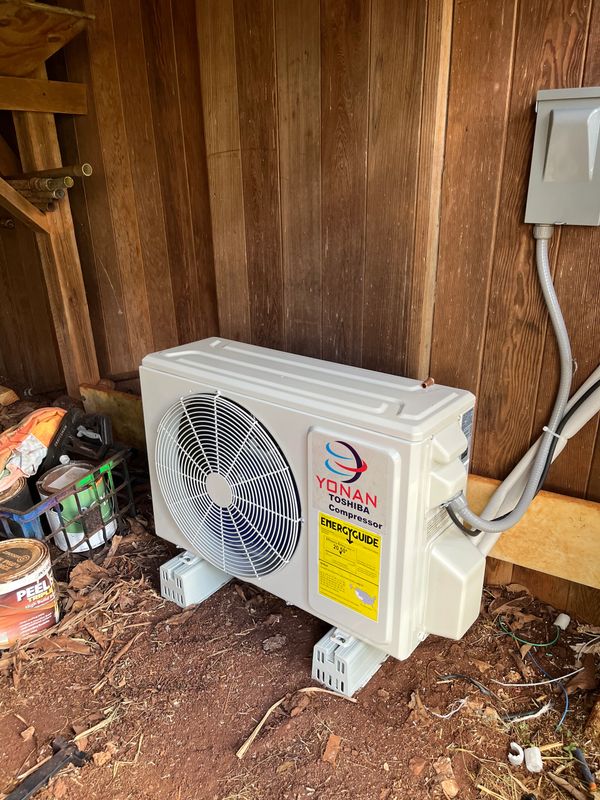

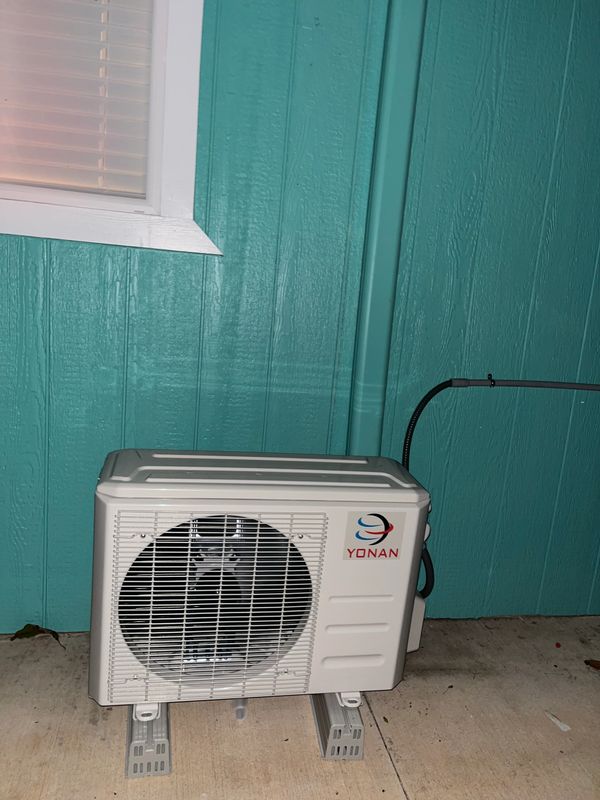

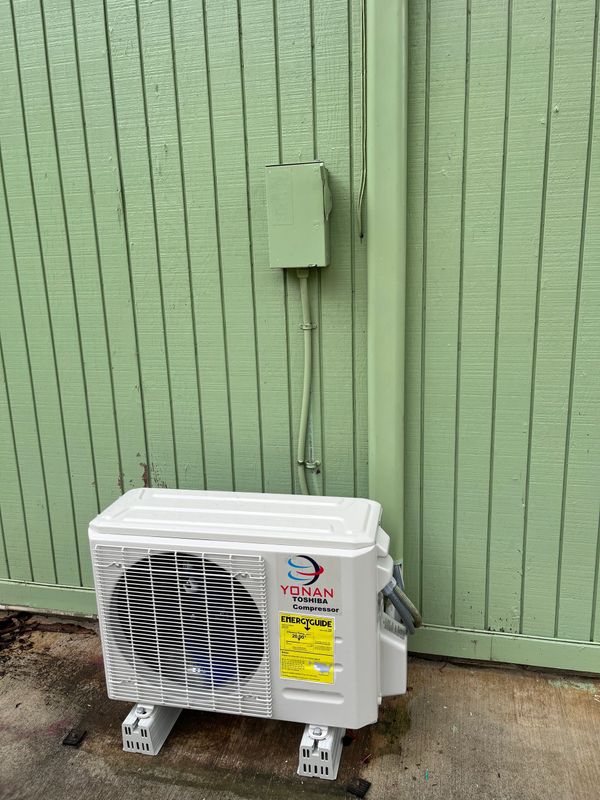

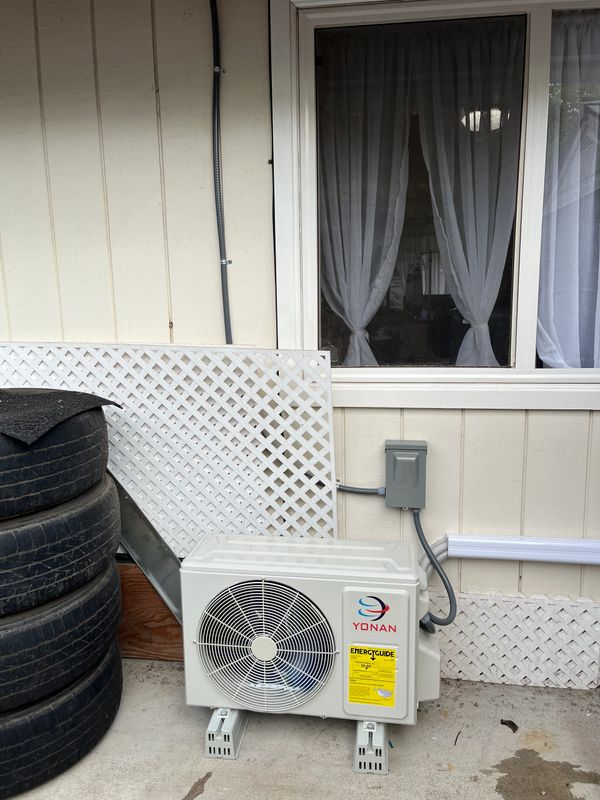

Outdoor Unit
Body is Outdoor Corrosion Resistant Finish
Water Tight Electrical (improve separate entrance )
DC Inverter
Fused Indoor and Outdoor
Toshiba VRF Compressor
Welling Fan Motor
AHRI & ETL USA Tested, Use by all major Air Conditioner Company.
Wireless Remote
All models included wireless remote control. Feature may differ on different model.
To Power on / off
auto ( cool & heat ) , Cool, Heat, Dehumidifier, Fan only, Sleep, Eco (power saving), Turbo (powerful Mode), Fan Speed (hi, m,low,auto)
Led Display ( on / off)
Swing Up / down, Manual Left - Right.
timer up to 24 hours,
2 AAA batteries
up to 19 SERIES SINGLE ZONE WALL-MOUNT COOL Only
9000 Btu $750
YS19A-09CRN1
230V 19 SEER
MFG Recommend Room Size: 129-189 SQFT
Bundle with 15’ line set (1/4", 3/8" copper, 4 way wire)
Indoor Size: 28.43" x 7.36" x 11.42"
Outdoor Size: 30.31" x 11.81" x 21.85"
1 Ton 12000 Btu $800
YS19A-12CRN1b
115V 16.5 SEER
YS19A-12CRN1
230V 19 SEER
MFG Recommend Room Size: 172-252 SQFT
Bundle with 15’ line set (1/4", 1/2" copper, 4 way wire)
Indoor Size 31.57" x 7.44" x 11.69"
Outdoor Size: 30.31" x 11.81" x 21.
1.5 Ton 18000 Btu $1000
YS19A-18CRN1
230V ( 20 SEER)
MFG Recommend Room Size: 251-368 SQFT
Bundle with 15’ line set (1/4", 1/2" copper, 4 way wire)
Indoor Size: 38.0" x 8.46" x 12.56"
Outdoor Size: 31.5" x 13.11" x 21.81
2 Ton 24000 Btu $1400
YS19A-24CRN1
230V 19 SEER Mini Split Ac, VRF Air Conditioner
MFG Recommend Room Size: 330-484 SQFT
Bundle with 15' line set (3/8", 5/8" copper, 4 way wire)
Indoor Size 42.52" x 8.9" x 13.19"
Outdoor Size 33.27" x 15.55" x 27.64"
3 Ton 36000 Btu $2500
YS17AB-36CRN1
230V 16 SEER
New 2019 Model with Gold Fin both Indoor and outdoor.
Dual Air Fins swing up/down, design for long range blows.
Great for Large House Living Room.
MFG Recommended Room Size: 516-756 SQFT
Bundle with 15’ line set (3/8", 5/8" copper, 4 way wire)
Indoor 49 1/2" x 11 1/8" x 14 1/4"
Outdoor 37-1/2" x 16-1/2" x 31 7/8
Multi Zone 21 SEER
2 Zone Split Ac: $2000 New Shipment in-stock June 2021
YBO-18HRN1
18000 Btu 21.3 SEER
Outdoor 33.27 x 14.29 x 27.64 Inch
Indoor Head
YBI-09HRN1
- (2) 9000 or 12000 Btu Wall Mount
3 Zone Split Ac $3000 New Shipment in-stock June 2021
YBO-30HRN1
30000 Btu 22 SEER
Outdoor 37.2 x 16.5 x 31.8 Inches
(9 9 18)
(12 x 3)(9 x 3)
4 Zone Split Ac $4000
YBO-36HRN1
36000 Btu 22.5 SEER
Outdoor: 37.2 x 16.5 x 31.8 Inches
(9 9 9 18)
(12 x 4)(9 x 4)
(9 12 24)
5 Zone Split Ac $5000
YBO-48HRN1
48000 Btu Outdoor 21.5 SEER
Outdoor 37.2 x 16.4 x 52.5 Inches
(9 9 9 12 24)
(12 x 5)
(12 24 24)
Multi Zone System
21 SEER MULTI ZONE with Heat Pump MINI SPLITS
One 230v outdoor Unit to up to 5 indoor head. Great for House with limited outdoor space,
(9 9) Ceiling Cassette Set
$2500 New Shipment in-stock June 2021
18000 Btu 21.3 SEER
Outdoor 33.27 x 14.29 x 27.64 Inch
-The drain pump can lift the condensing water up to 29.50 in
-The E-box is simply and safely built inside the indoor
unit.This integrated design provides a more compact
body size and ease of installation.And the maintenance
of the E-box is simple,by opening the air-return-grille.
(9 9 18) Ceiling Cassette Set
$3750 New Shipment in-stock June 2021
30000 Btu Outdoor 22 SEER
-37.24 x 16.14 x 31.89 In
-The drain pump can lift the condensing water up to 29.50 in
-The E-box is simply and safely built inside the indoor
unit.This integrated design provides a more compact
body size and ease of installation.And the maintenance
of the E-box is simple,by opening the air-return-grille.
(9 9 9 18) Ceiling Cassette Set
$5000
36000 Btu Outdoor 22.5 SEER
-37.24 x 16.14 x 31.89 In
-The drain pump can lift the condensing water up to 29.50 in
-The E-box is simply and safely built inside the indoor
unit.This integrated design provides a more compact
body size and ease of installation.And the maintenance
of the E-box is simple,by opening the air-return-grille.
(9 9 9 18 18 ) Ceiling Cassette Set
$6250
YBO-48HRN1 48000 Btu Outdoor 21.5 SEER
Outdoor 37.2 x 16.4 x 52.5 Inches
-The drain pump can lift the condensing water up to 29.50 in
-The E-box is simply and safely built inside the indoor
unit.This integrated design provides a more compact
body size and ease of installation.And the maintenance
of the E-box is simple,by opening the air-return-grille.
9000 BTU 22 SEER Ceiling Cassette Indoor Head
Instock
MFG Recommend Room Size: 129-189 SQFT
line size (1/4", 3/8" copper, 4 way wire)
Air Flow (Hi/Med/Lo): 374 / 301 / 257 CFM
Sound Level (Hi/Med/Lo): 41 / 37 / 33 dB(A)
Size (WDH): 22"-1/2 x 22"-1/2 x 10"- 1/4
Light COMMERCIAL Split Air CONDITIONER
Floor Ceiling Split AC
Air outside can be lead into the room via a connection pipe, which keeps the indoor air
fresh and healthy.
-The unit has auto horizontal swing and auto
vertical swing function,which supplies more
even and comfortable airflow
57.0 / 54.0 / 52.0 dB(A)
65.0 x 26.5 x 9.3 Inches
Design for commercial property, Long range blower ideal for large room.
Ceiling Cassette Split Ac
Mini Split Ac, VRF Air Conditioner
-The drain pump can lift the condensing water up to 29.50 inch.
-The E-box is simply and safely built inside the indoor
unit.This integrated design provides a more compact
body size and ease of installation.And the maintenance
of the E-box is simple,by opening the air-return-grille.
55.0 / 52.0 / 49.0 dB(A)
33.0 x 33.0 x 11.4 Inches
4 way blower for more even cooling.
Top Discharge Outdoor Unit Central AC Style.
Include one indoor & one outdoor set
60000 Btu Top Discharge
29.2 x 29.2 x 24.9 Inches
Line Size ( 3/8”, 7/8” 4 way wire)
36000 Btu Top Discharge
Line size ( 3/8”, 3/4” 4 way Wire)
Light Commercial Split Ac
230v 16 SEER Cool Only
Light Commercial Mini Split Ac, VRF Air Conditioner, Line set Not included with system, Indoor Gold Fin, outdoor silver fin.
3 Ton 36000 Btu Ceiling Cassette
$3000
YCC-36CRDN1
4 ton 48000 Btu Ceiling Floor
$3500
YCF-48CRDN1
4 Ton 48000 Btu Ceiling Cassette
$3500
YCC-48CRDN1
4 Ton 48000 Btu
Include one indoor & one outdoor set
48000 Btu Double Stack Fan
37.5 x 16.4 x 52.5 Inches
Line Size ( 3/8" / 3/4", Copper
3 way Communication + 2 way power wire)
5 Ton 60000 Btu Ceiling Cassette
$4000
YCC-60CRDN1
5 Ton 60000 Btu Ceiling Floor
$4000
YCF-60CRDN1
